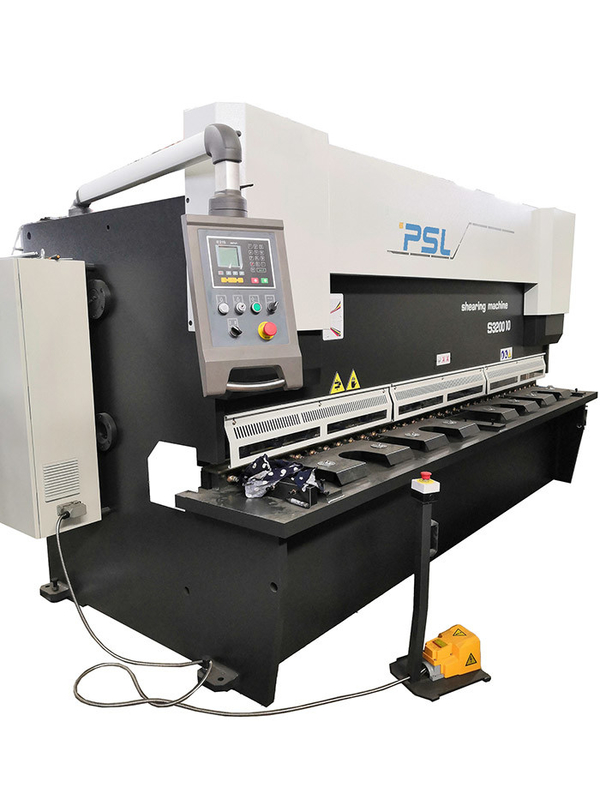

QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine

QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine
QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine
video play

Large Image :  QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine

Product Details:
Place of Origin: China
Brand Name: PSL,OEM
Model Number: QC11K-10x3200
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Naked into container
Delivery Time: 45-60days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: QC11Y-10x3200 CNC Hydraulic Shearing Machine Anti-twisting Application: Industrial Metal Cutting,Metal Plate Cutting Machine
Control Mode: NC/CNC Controller Estun E21s, ELGO P40T, Delem DAC360T Control Axis: Back-gauge, Cutting Angle, Cutting Length And Blades Clearance
Main Motor: Normal AC Motor, Or Servo Motor Save Energy Throat Gap: 100mm, 150mm-500mm Optional
Rated Power: 11kw Back-gauge: Ball Screw + Linear Guider, Traveling 750mm
Back-gauge Motor: Inverter Deriver, Or Servo Driver Max. Cutting Width (mm): 2500/3200/4000/6000 Etc
Max. Cutting Thickness (mm): 4/8/10/12/16/20 Etc Dimension(l*w*h): 3880*1850*2200mm
Weight: 7500KG Rear Supporting: Rear Pneumatic Cutting Supporting Device For Thin Plate
Color: White+Blue,Gray Black+White, Customized Voltage: Customized,220V/380V/400V 50HZ/60HZ
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support Warranty: 1 Years
High Light:

QC11K-10x3200 CNC shearing machines

,

shearing cutting guillotine machines PSL

,

hydraulic guillotine machines PSL

QC11Y(K) China CNC hydraulic Guillotine shearing machines manufacturer



Standard configratures of the Shear

1. The Shear machine frame is full welded structure made by welding aparatus and stress relief process by Annealing treatment.
2. The three-point rolling guide rail is used to support the blade/knife holder.
3. Estun E21S controller: LCD display the position of back gauge
4. Main electric relays contactors limited switches Schneider brand
5. Germany Rexroth or Yuken TW hydraulic valves system
6. SUNNY, USA or Allead Germany oil pump with slide-in pipes joints
7. Back gauge is moved with Ball-screw shaft and Linear guider, driven by AC motor
8. Motorized adjustment of blade gap/clearance and shearing angle
9. Hydraulic hold-downs with sequential operation
10. One set of bladder-type accumulator as an auxiliary energy source
11. Moveable foot switch with Emergency
12. Front safe guard fences to avoid fingers enter
13. One set of Rectangular blade (upper and lower) with four cutting edges, materials is 6CrW2Si/9CrSi
14. Front support arms (3sets) with length 750-1000mm
15. The universal conveying ball supporting table ,reduce the contact between sheet plate and machine work table
16. Internal hexagonal key spanner for adjusting blades
17. Comprehensive instruction & maintenance manual

QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 0

QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 1   QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 2
QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 3

QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 4 QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 5

QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 6

QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 7 QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 8

QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 9


Optional Accessories

1. DELEM DAC360T or ELGO P40T CNC controller
2. Backgauge was drived by Servo motor
3. Automatic cutting angle, blade gap/clearance, and cutting width
4. Automatic front gauge feeding table
5. Materials H13K or Cr12MoV blades (for cutting stainless steel)
6. Rear Pneumatic cutting supporting device for cutting piece falling smooth.
QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 10 QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 11
QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 12
QC11K-10x3200 CNC Shearing Machine 3200 Mm Cutting Industrial Metal Guillotine Machine 13







Standard configures,



Optional model Manufacturer Remarks
CNC system

E21s

P40T
DAC360

Estun

ELGO

DELEM


Hydraulic system Main solenoid valves

Rexroth

Yuken


Back gauge

AC motor

Servo motor

Ball screw + Linear guider



 ESTUN

TAIWAN


Oil pump Inner Gear oil pump

Sunny

Allead


Main power

Normal motor,

Servo motor (Optional)

China

VEICHI


Front work table Big pallet and ball rack PSL
Security measures

 Front steel fences protection

 Back safe sensor protection (Optional)

 PSL
Back cutting supporting system Pneumatic

PSL


Blade clearance

 Motorized adjustment

 PSL
Electric parts Schneider Relay,Contactor Schneider
Foot switch Korean Kacon vertical pedal  Kacon Korean
Throat gap 100mm, 150-500mm(option)



QC11K series main specifications,

Model

Max.

Tkn.

 Yield strength Max. Length Angle X.Stroke Power L*W*H(mm) Weight
QC11K-6*2500 6mm ≤450kN/cm 2500mm 0.5-2.5° 750mm 7.5kW 3140*1740*2040 4800Kg
QC11K-6*3200 6mm ≤450kN/cm 3200mm 0.5-2.5° 750mm 7.5KW 3750*1770*2150 5800Kg
QC11K-6*4000 6mm ≤450kN/cm 4000mm 0.5-2.5° 750mm 11KW 4830*1840*2150 7500Kg
QC11K-6*5000 6mm ≤450kN/cm 5000mm 0.5-2.5° 750mm 15KW 5830*1840*2150 13000Kg
QC11K-6*6000 6mm ≤450kN/cm 6000mm 0.5-3° 750mm 15KW 6480*2100*2300 18000Kg
QC11K-8*2500 8mm ≤450kN/cm 2500mm 0.5-2.5° 750mm 11KW 3040*1700*1700 5500Kg
QC11K-8*3200 8mm ≤450kN/cm 3200mm 0.5-2.5° 750mm 11KW 3860*1700*1700 6200Kg
QC11K-8*4000 8mm ≤450kN/cm 4000mm 0.5-2.5° 750mm 11KW 4640*1700*1700 7900Kg
QC11K-8*5000 8mm ≤450kN/cm 5000mm 0.5~3° 750mm 18.5KW 5400*2400*2000 13500Kg
QC11K-8*6000 8mm ≤450kN/cm 6000mm 0.5~3° 750mm 22KW 6480*2100*2350 19000Kg
QC11K-8*8000 8mm ≤450kN/cm 8000mm 0.5~3° 750mm 22KW 8580*2130*2350 29500Kg
QC11K-10*2500 10mm ≤450kN/cm 2500mm 0.5-2.5° 950mm 15KW 3040*1800*1700 6500Kg
QC11K-10*3200 10mm ≤450kN/cm 3200mm 0.5-2.5° 950mm 11KW 3850*1830*1900 7500Kg
QC11K-10*4000 10mm ≤450kN/cm 4000mm 0.5-2.5° 950mm 15KW 4650*2100*2000 11000Kg
QC11K-10*5000 10mm ≤450kN/cm 5000mm 0.5~3° 950mm 15KW 5750*2100*2000 16000Kg
QC11K-10*6000 10mm ≤450kN/cm 6000mm 0.5~3° 950mm 15KW 6500*2100*2300 24000Kg
QC11K-10*8000 10mm ≤450kN/cm 8000mm 0.5~3° 950mm 15KW 6800*2100*2300 32000Kg
QC11K-13*2500 13mm ≤450kN/cm 2500mm 0.5-2.5° 1000mm 15KW 3285*1830*2390 7500Kg
QC11K-13*3200 13mm ≤450kN/cm 3200mm 0.5-2.5° 1000mm 15KW 3855*1830*2390 9500Kg
QC11K-13*4000 13mm ≤450kN/cm 4000mm 0.5-2.5° 1000mm 18.5KW 4850*1830*2390 12500Kg
QC11K-13*6000 13mm ≤450kN/cm 6000mm 0.5~3° 1000mm 30KW 6850*1930*2650 30000Kg
QC11K-13*8000 13mm ≤450kN/cm 8000mm 0.5~3° 1000mm 30KW 8950*2130*2850 46000Kg
QC11K-13*9000 13mm ≤450kN/cm 9000mm 0.5~3° 1000mm 45KW 9980*2130*2850 65000Kg
QC11K-13*10000 13mm ≤450kN/cm 10000mm 0.5~3° 1000mm 45KW 11050*2500*3100 85000Kg
QC11K-16*2500 16mm ≤450kN/cm 2500mm 0.5~3° 1000mm 22KW 3440*1940*2830 9500Kg
QC11K-16*3200 16mm ≤450kN/cm 3200mm 0.5~3° 1000mm 22KW 4010*1940*2830 11000Kg
QC11K-16*4000 16mm ≤450kN/cm 4000mm 0.5~3° 1000mm 30KW 5010*1980*2830 15500Kg
QC11K-16*5000 16mm ≤450kN/cm 5000mm 0.5~3.0° 1000mm 30KW 5900*2600*2830 25000Kg
QC11K-16*6000 16mm ≤450kN/cm 6000mm 1~3.0° 1000mm 37KW 6900*2600*2830 36000Kg
QC11K-16*8000 16mm ≤450kN/cm 8000mm 1~3.0° 1000mm 45KW 8900*2900*3430 75000Kg
QC11K-20*2500 20mm ≤450kN/cm 2500mm 1~3° 1000mm 30KW 3440*1980*2830 14000Kg
QC11K-20*3200 20mm ≤450kN/cm 3200mm 1~3° 1000mm 30KW 4010*1900*2830 17000Kg
QC11K-20*4000 20mm ≤450kN/cm 4000mm 1~3.0° 1000mm 37KW 4850*2600*2900 22000Kg
QC11K-20*6000 20mm ≤450kN/cm 6000mm 1~3.0° 1000mm 55KW 6700*3000*3000 54000Kg
QC11K-30*2500 30mm ≤450kN/cm 2500mm 1~3.0° 1000mm 45KW 3440*1900*2830 25000Kg
QC11K-30*3200 30mm ≤450kN/cm 3200mm 1~3.0° 1000mm 45KW 4200*1900*3000 34000Kg

Remarks:  If these parameters are not updated or changed in time, please understand and contact with us Chat online or email. THANKS.
