Product Details:
Payment & Shipping Terms:
|

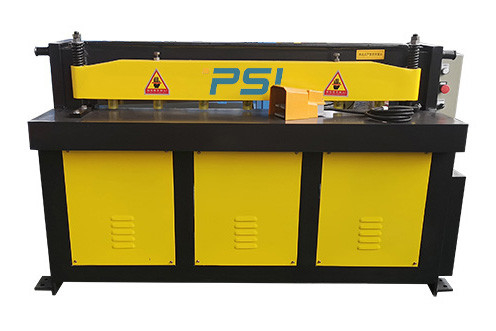

| Name: | Electric Mechanical Shear | Condition: | New |
|---|---|---|---|
| Application: | Industrial Metal Cutting,Sheet Metal Industry | Cutting Material: | Stainless Steel, Carbon Steel, Aluminum,MS/SS/GI Etc Steel Plate |
| Control Mode: | Electric, Foot Pedal | Driving: | Motor + Gearbox Reducer |
| Rated Power: | 4kw | Back-gauge: | Manual T-type Screw, Traveling 450mm |
| Color: | Black+yellow, Or Customized | Voltage: | Customized,220V/380V/400V 50HZ/60HZ |
| After-sales Service Provided: | Video Technical Support, Online Support | Warranty: | 2 Years |
| High Light: | electric sheet metal shearing machine,4mm shearing machine,electric shearing machine |
||
Specifications of Shear Q11-3x2000,
| Specification | Q11-3x2000 |
| Max. Cutting thickness |
3.0mm (Mild steel) |
| Max. Cutting width | 2000mm |
| Strokes | 30/min |
| Backgauge stroke | 10-400mm |
| Shear angle | 1.5Degree |
| Height of working table | 800mm |
| Width of working table | 300mm |
| Main servo motor power | 4kw |
| Dimensions: | 2450*780*1300 |
| Net weight Appro. | 2.0Tons |
| Volt. |
380V,50HZ
|
