| Condition: | New | Name: | Pipe/Tube Bending Machine |
|---|---|---|---|
| Application: | Circular Pipe Bending, Square Tube Processing | Automatic Grade: | Automatic, NC, CNC System |
| Pipe Material: | Carbon Steel, Stainless Steel | Belling Type: | "R" "U" "Z",R-shape & Straight Belling |
| Pipe Diameter: | 16-75mm | Molds: | Single Cell, Double Stair，harden HRC60-63 |
| Max R For Bending: | 250mm | Power(w): | 7.5KW |
| Weight: | 2200kg | Dimension(l*w*h): | 4.2M*0.85M*1.1M |
| Color: | Bule, Gray Black, Or Customized | Voltage: | 380V 50HZ 3Phase(Customized) |
| Warranty: | 12 Months | ||
| Highlight: | 3 axis pipe bending machine PSL,2 inch pipe bending machine PSL,cnc pipe bending machine PSL |
||

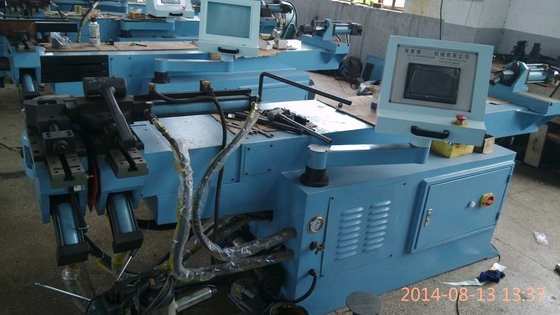

NC high performance single-head hydraulic pipe bending machine
Functions:
NC high performance single-head hydraulic pipe bending machine, NC control, multi-groups program and multi-angles setting, makes your operation easy and convenient, widely used in blast pipe, steel furniture. plumbing.bath equipment and other metal pipes processing.
1) Touch Screen +PLC NC Controlling,machine operation is easy.
2) Direct Acting Hydraulic clamping.
3) Easy Operator Interface and Easy Data Input by English.
4) Automatically lock angle and the bending accuracy is high.
5) Angle changing is controlled by encoder.
6) The foot-switch with multiple-function:automatic start,emergency stop and resuming,The safety is high.
7) Suitable materials:Steel pipe,Stainless steel pipe, copper pipe,aluminum pipe,iron and others.
Main technical parameters:
| Machine type | SB-75NC |
| Maximum bending R for carbon pipe is:1.5D |
Ф76.2*2.0t |
| Maximum bending R for s.s pipe is 1.5D |
Ф69.9*2.5t |
| Max R for bending | 250mm |
| Max angle for bending |
185° |
| Bending process for every pipe |
9 |
| Oil pressure | 14mpa |
| Electrical motor power |
7.5kw |
| Weight | 2200kg |
| Size(mm) | 4200*850*1100 |
| Main components | |||||
| NO. | NAME | Model | COMPAYNY | ||
| 1 | Touch Screen | F6070H | WINVIEW Taiwan | ||
| 2 | Module group | RS-232 | EASYVIEW Taiwan | ||
| 3 | Power Supply | S-100-24 | TaiWan | ||
| 4 | PLC | VIGOR Taiwan | |||
| 5 | Encoder | 1200RPM/24VDC | NEMICON Japan | ||
| 6 | Magnetic switch | CN-16 | Taian Taiwan | ||
| 7 | Motor | 10HP | WuXi | ||
| 8 | Solenoid valve | Yuken Taiwan | |
| 9 | Stopping valve | ACHUNG/HIVSHUN TW | |
| 10 | hrottle valve | ACHUNG/HIVSHUN TW | |
| 11 | Fuel tank | ||
| 12 | Oil pump | 17CC | Taian Taiwan |
| 13 | Oil Pipe | TaiWan |
