Product Details:
Payment & Shipping Terms:
|
| Product Name: | CNC Fiber Laser Marking Machine | Machine Type: | SFM-20 |
|---|---|---|---|
| Condition: | New | Application: | Metallic And Non-metallic Materials Laser Marking, Advertising Industries,Hardware, Furniture, Electrical Industry |
| Keyword: | Fiber Laser Marking Machine, Fiber Laser Engraving Machine | Function: | Metallic & Non-metallic Materials Laser Marking, Metal Sheet Tube Laser Engraving |
| Cnc Or Not: | Yes | Operation System: | Special Control Software For Laser Marking |
| Laser Source: | Raycus Fiber Laser | Laser Power: | 10W,20W,30W,50W |
| Laser Mode: | Continuous | Working Table: | 110x110mm, 175*175m, 220*220mm |
| Max.Marking Thickness: | 0.001-0.5mm | Cooling Mode: | Wind |
| Focus Adjusting: | Manual Adjusting Focus | Applied Software: | CorelDraw,Photoshop,AutoCAD,CAM |
| Dimensions: | 1.1*0.8*1.5m | Color: | Standard Color, Or Customized |
| Weight Of Machine: | 200kg | Maintenance: | Remote Online Diagnosis And Detection |
| Warranty: | 1 Years | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Certification: | CE, ISO,SGS,CCC | ||
| High Light: | 110x110mm Fiber Laser Engraving Machine,Fiber Laser Engraving Machine For Metal,Raycus 50w Fiber Laser For Metal Plastic |
||

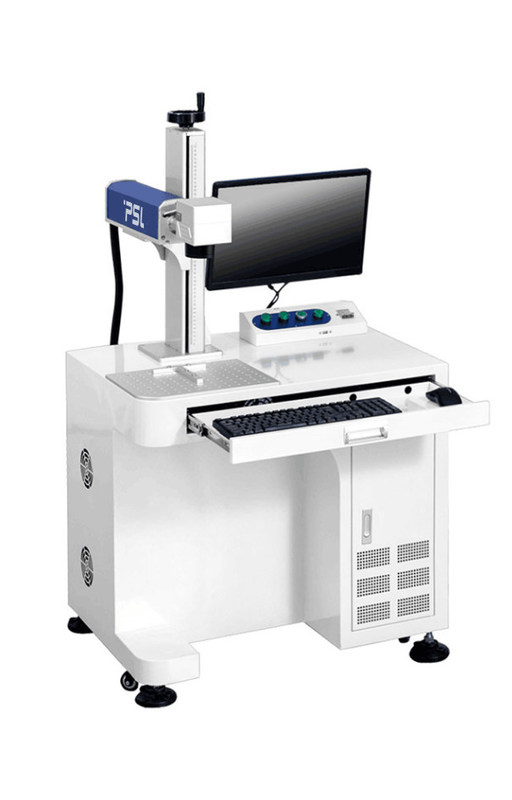

20W 30W 50W Fiber Laser Marking machine metal & non-metal Laser engraving machine
Main feature discription,
Laser marking machines, Using high-speed galvanometer scanning system, has the characteristics of high speed and high precision.
Non-contact marking process, marking a permanent effect, the operations of humanity, equipment running stability.
Special control software is compatible with AutoCAD, Coreldraw, Photoshop and other software.
It can make text, symbols, graphics, images, bar codes, two-dimensional codes, serial number is automatically incremented and revision, support PLT, PCX, DXF, BMP, JPG, and other files, can be directly used TIF fonts to meet the industrialized mass online or offline production needs.
Technical parameters of Fiber laser marking machine:
| Performance | Technical parameter |
| Laser wavelength | 1064nm |
| Laser power | 20W |
| Pulse frequency | 20KHz~100kHz |
| Scan speed | ≤8000mm/s |
| Min. line breadth | 0.01mm |
| Min.character height | 0.1mm |
| Repeat accuracy | 0.001mm |
| Mark depth | 0.001-0.5mm |
| Mark range | 110×110mm or 175X175mm |
| Cooling method | wind |
| software | special control software for laser marking |
| Work environment | temperature:5℃～30℃；humidity:≤85% |
| power | 220V / 50(60)Hz / 1KVA |
Configuration of Fiber Laser marking machine:
| system | component | |
| High speed scan system | Laser-induced vibration lens | China |
| Laser | Fiber laser | Wuhan Raycus |
| Photics transmission system | Focusing mirror | Singapore |
| power | Power for fiber laser | China |
| Control software | software | Beijing |
| Control panel | Beijing | |
| Data dog | Beijing | |
| Work table | 3D manual work table | China |
| Rotary work table(optional) | motored | China |
