Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Aluminum Door & Window CNC Drilling Milling And Cutting Machine |
|---|---|---|---|
| Product Name: | 3-axis Aluminum PVC Door And Window Cnc Machining Center | Logo: | PSL, OEM |
| Material Capabilities: | Aluminum Alloy Door & Window, PVC Profile | Application: | Construction Works |
| Cnc Machining Or Not: | CNC Multi-axes Machining | Cnc Or Not: | CNC,Yes |
| Servo Axes: | 3-axes, 4-axes, 5-axes | Service: | Customized OEM,CNC Machining,Manufacturer |
| Machining Capacity: | 150 X 200 X 2300 Mm; | The Feeding Axis: | X Axis / Y Axis / Z Axis |
| The Running Rate: | X Axis / Y Axis / Z Axis : 70/40/40 M/min | A-axis Turning Angle: | -90︒- +90︒ |
| Precision Of Positioning: | 0.1mm | Re-positioning: | 0.05mm |
| Spindle: Power / Speed: | 5.0kw/18000 Rpm | Total Power: | 7.5KW |
| Dimension(l*w*h): | 11300x2500x3200 Mm | Tools Position: | 6 Stations (optional) |
| Weight: | 1.1 Tons | Voltage: | 220V/380V/415V, 50HZ/60HZ 20KVA |
| Air Pressure: | 6~8 Kg/cm2 | Color: | Silvery White, Gray-black,Customized |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | Warranty: | 1 Year |
| Highlight: | aluminum cnc drilling machine PSL,aluminium profile cnc milling machine PSL,aluminium cnc engraving machine PSL |
||

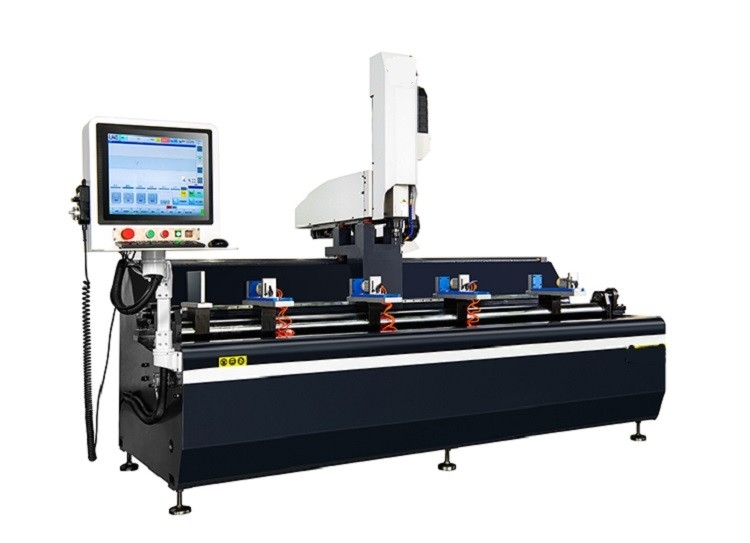

4-axis CNC Machining Center aluminum alloy profiles PVC CNC cutting drilling milling and tapping machine
Detailed Product Description:
Suitable for processing of installation holes, launder slots, lock holes on aluminum alloy profiles.
Adopts with rotated clamping system,It is available to do processing on three side of the profile at one time.
Adopts Germany PA CNC system, offers friendly operation surface.
Adopts high speed and efficiency 5 KW manually tool changer spindle.
The clamping work table is available for rotated from -90 ~0~+90 degree.
Adopts spray cooling system, cooling tools.
The main technical parameters:
