Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Product Name: | Aluminum Profiles Double Head Cutting Saw Machine |
|---|---|---|---|
| Name: | CNC Aluminum Door And Window Double Head Sawing Machine | Logo: | PSL, OEM |
| Material Capabilities: | Aluminum Alloy Profile, PVC | Application: | Aluminum Alloy Profile And PVC Processing, Sawing |
| Cnc Machining Or Not: | Automatic | Cnc Or Not: | Yes |
| Cutting Capacity: | 135x260 X 4500mm/6000mm | Working Speed: | 2850r/min |
| Precision Of Positioning: | 0.1mm | Blade Dimension: | Ф250×Ф30×120T |
| Swing Angle Of Saw Blade: | 22.5°~90°~135° | Saw Blade Feeding Speed: | 0-3m/min |
| Saw Blade Returning Speed: | 2-3 M/min | Power Of Motor: | 2 X 2.2kw |
| Cooling: | Wind/air | Air Pressure: | 6~8 Kg/cm2 |
| Air Consumption Capacity: | 250L/min | Dimension(l*w*h): | 7500x1700x1750 Mm |
| Weight: | 1900kg/2100kg | Voltage: | 220V/380V/415V, 50HZ/60HZ, 3Ph |
| Color: | Silvery White,Customized | Service: | Customized OEM,CNC Machining,Manufacturer |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| High Light: | aluminum double head cutting saw CNC,double head aluminium profile cutting machine,double head Aluminum Cutting Machine |
||

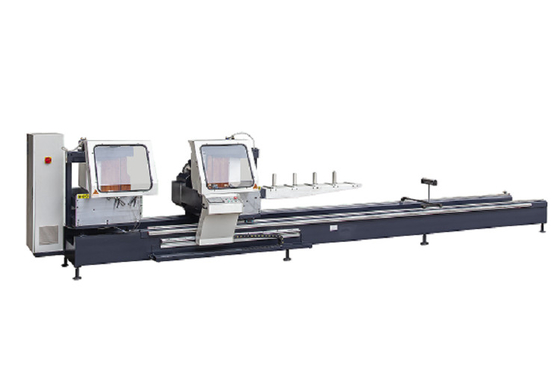

CNC Automatic Aluminum Door and window Double Head Sawing Machine for any angles cutting
Detailed Product Description:
1.It is mainly used in cutting material plan of aluminum alloy profile, also available in cutting plastic profile.
2.By using hard alloy saw blade, the outer diameter can reach 22". Both its linear speed and processing precision are high. When the machine works, the blades of double-head saws can carry on cutting simultaneously or separately.
3.The saw blades can tilting at any angle of 22.5°~90°~135°.
4.In this machine, Japanese Panasonic NC system and feedback system of German ELGO original assemble, servo device and reducer control swing angle, whose positioning precision is high, repeating positioning precision is about ±0.1 mm, Italy original assemble motor, whose cutting precision is high,and its stability is good, so they are mor suitable for cutting at any angle for aluminum alloy profiles.
Main Technique Parameter:
|
1. |
Saw cutting length |
420(90°) ~6000mm |
|
2. |
Main motor power |
2.6 KW×2 |
|
3. |
Main motor rotary speed |
2850r/min |
|
4. |
Saw blade dimension |
Φ550 × Φ30 × 120T |
|
5. |
Saw blade tilting angle |
22.5°~90°~135° |
|
6. |
Saw blade feeding speed |
0~3m/min |
|
7. |
Saw blade retracting speed |
2~3m/min |
|
8. |
Operation air pressure |
0.6~0.8Mpa |
|
9. |
Operation voltage |
380V |
|
10. |
Overall dimension (LxWxH) |
7500(9000) ×1700×1750mm |
|
11. |
Weight |
2100/2300KG |
|
12. |
Air consumption capacity |
250L/min |
