| Condition: | New | Product Name: | Aluminum Profiles Single Head Cutting Saw Machine |
|---|---|---|---|
| Name: | Aluminum Profile Auto Feeding Sawing Machine | Logo: | PSL, OEM |
| Material Capabilities: | Aluminum Alloy Profile | Application: | Aluminum Alloy Profile Processing, Cutting Sawing |
| Cnc Machining Or Not: | Automatic Feeding | Cnc Or Not: | Yes |
| Router Capacity: | 230x150 X 3000mm | Working Speed: | 2840r/min |
| Precision Of Positioning: | 0.1mm | Blade Dimension: | Ф250×Ф30×120T |
| Swing Angle Of Saw Blade: | 90°~45° | Cooling: | Wind/air |
| Saw Blade Feeding Speed: | 0-3m/min | Saw Blade Returning Speed: | 2-3 M/min |
| Dimension(l*w*h): | 5300x1300x1350 Mm | Power Of Motor: | 3kw |
| Air Pressure: | 6~8 Kg/cm2 | Weight: | 800kg |
| Voltage: | 220V/380V/415V, 50HZ/60HZ | Color: | Silvery White,Customized |
| Service: | Customized OEM,CNC Machining,Manufacturer | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | ||
| High Light: | single head aluminium cutting machine,aluminium section cutter machine,aluminium profile cutter machine |
||

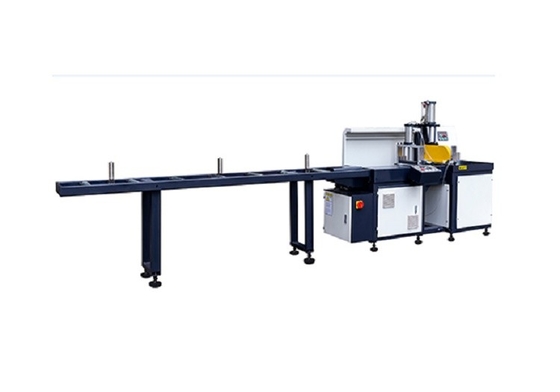

Aluminum Window Profile Auto Feeding Corner Key Single head Cutting saw Machine
Detailed Product Description:
Main Application:
Mainly used for aluminum alloy profile cutting, also can be used for plastic profile cutting.
Adopting durable hard alloy saw blade, diameter up to 20 ", high linear speed, high precision machining.
When the machine is working, the saw head can be placed in the angle of 90 degree ~45 degree.
The positioning dimension is high accurate. So, it is more suitable for cutting aluminum alloy profiles.
Main Technique Parameter:
1. Cutting Length------------------------------80~2080mm/3080mm
2. Cutting Width X Height--------------------230x150mm/280x100 mm
3. Main Motor Power--------------------------2.2kw
4. Main Motor Rotating Speed--------------2850r/min
5. Saw Blade Size------------------------------ф500xф30x120T
6. Swing Angle of Saw Blade----------------90°~45°
7. Feeding Speed of Saw Blade-------------0~3m/min
8. Returning Speed of Saw Blade-----------2~3m/min
9. Working Air Pressure------------------------0.6~0.8Mpa
10. Working Voltage----------------------------415V/50Hz
11. Overall Size(L X W X H)--------------1000(5200)x1300x1350mm
12. Weight-----------------------------------------900kg
