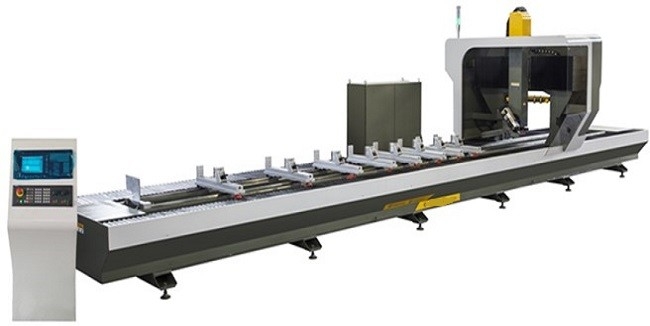

4 Axis CNC Aluminum Cutting Machine Profile PVC Cnc Drilling And Tapping Machine

4-axis CNC Machining Center aluminum alloy profiles PVC CNC cutting drilling milling and tapping machine





Detailed Product Description:



It is suitable for milling, drilling, cutting and other processes of aluminum alloy profile, PVC, light alloy and other materials.



One time clamping can complete the processing of any angle surface of - 110 ︒ ~ + 110 ︒ with high work efficiency.



Equipped with Siemens 828d CNC system, it has fast operation, excellent performance and powerful function.



Equipped with Italian HSD high-speed motorized spindle and Siemens Servo drive.



Mobile magazine with 6/8 tool positions. The fixture can automatically identify the working position and move and clamp by itself.



HIWIN ball screw, linear guide rail, imported rack and Taiwan Air-tec pneumamtic parts are adopted.



The equipment is equipped with protective device, safety indication and fault alarm functions.





The main technical parameters:



Type of machine	KT-S860-4
Machining dimension:  X-axis travel	8500mm
Y-axis travel (3-axes)                                      Y-axis travel (4-axes)	650mm 600mm
Z-axis travel	500mm
A-axis angle range	︒ - 110︒- +110︒
Work area: X axis / Y axis / Z axis	8500/6500/500 mm
Precision:     Positioning	±0.05 mm
Repeatability  X-axis                                           Y-axis                                           Z-axis                                           A-axis	±0.02 mm ±0.015 mm ±0.01 mm ±0.01 mm
Drilling and milling verticality	0.1/100 mm
Cylindricity	0.1 mm
The surface roughness of drilling and milling surface	Ra1.6 um
The feeding rate: X axis / Y axis / Z axis	70/40/40 m/min
A-axis	102 r/min
Tool change time	8s
Spindle: power / speed (Italy HSD Spindler)	7.5kw/24000 rpm
The servo motor (Yaskawa): X-axis / Y axis / Z axis / A-axis	3.3/2.3/3.3/0.85/ kw
The drilling and milling chuck diameter	Φ16/saw blade Φ120~Φ215 mm
Voltage / Total power	380V 50 HZ/20 KW
Overall dimensions:	11300×2500×3200 mm
Control Box Dimensions:	600×1400×1800 mm
The necessary power source:	20 KVA
Air pressure	6~8 kg/cm2











































































































KT-S860 Basic processing capacity:



Milling & slotting	Flank machining	Drilling machining	Face milling	cutting
Ø8 Milling knife	Ø8 Milling knife	Ø12 drilling head	Ø60 millling blade	Ø160 saw blade
Speed 18000r/m	Speed 15000r/m	Speed 3000r/m	Speed 10000r/m	Speed 4000r/m
cutting depth 4 mm	cutting width 8mm	drilling process requirement	Milling depth 3 mm	Cutting process requirement
Feed speed 3m/min	Feed speed 3m/min	0.8m/min	3m/min	1m/min





Equipment configuration:

1  spindle motor: 7.5KW (ATC) HSD Italy imported high-speed motorized spindle;

2  all steel structure frame: stress treatment, precision machining;

3  guide rail: X, Y, Z axis are imported linear guide rail (Taiwan HIWIN precision guide rail);

4  X, Y axis transmission: the use of imported high precision gear rack drive;

5  Z shaft transmission: imported high precision ball screw drive (Taiwan HIWIN);

6  A axis turning shaft;

6  tool position: 6 station mobile rotary tool library;  Italy imported ISO30 handle; .

7  equipped with automatic tool setting device for long detector to detect tool length;

8  working table: 8 sets of automatic positioning fixture, with T type slot clamping device;

9  drive system: adopting Siemnes brushless servo drive units;

10  towline: German technology;

11  spray cooling device ;

12  Tool setting instrument: automatically detect the tool length;

13  Siemens 828D control operating system

14  3D portable controller 1 set;

15  control box: the main electrical components, industrial control, control system are all imported;

16  operating system: Siemens control system;

17 CNC system, software system Siemens
