| Condition: | New | Product Name: | Big Professional Cnc Band Saw Machine,aluminum Plate And Bar Cnc Machining |
|---|---|---|---|
| Name: | Precisely Aluminum Plate And Bar Cnc Machining | Logo: | PSL, OEM |
| Material Capabilities: | Aluminum Plate,Copper Plate | Application: | Industrial Aluminum Plate And Bar Processing |
| Cnc Machining Or Not: | CNC Machining | Service: | Customized OEM,CNC Machining,Manufacturer |
| Cnc Or Not: | CNC,Yes | Drawing Format: | PDF/DWG/IGS/STP/ Etc |
| Equipment: | CNC Machining Center,machine | Sawing Capacity: | Sawing Length 4000mm |
| Servo Feeding: | 4000mm | Cutting Speed: | 800-2500 Mm/min (frequency Control) |
| Tolerance: | 0.1mm | Main Power(w): | 22KW |
| Dimension(l*w*h): | 9500*5500*2900mm | Weight: | 11.5T |
| Voltage: | 220V/380V/415V, 50HZ/60HZ | Color: | Silvery White,Customized |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Highlight: | vertical band saw machine for metal cutting,vertical band saw for metal and wood,vertical metal cutting band saw machine |
||

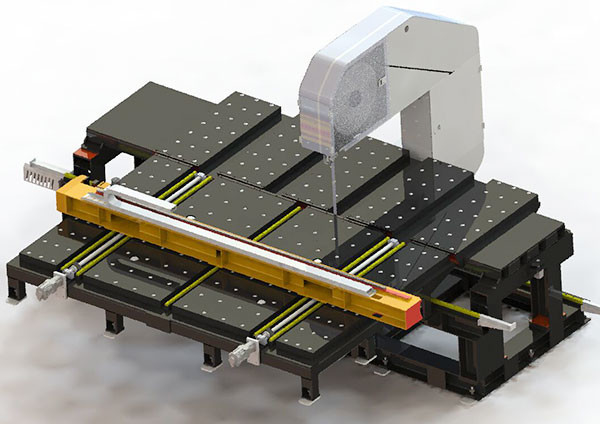

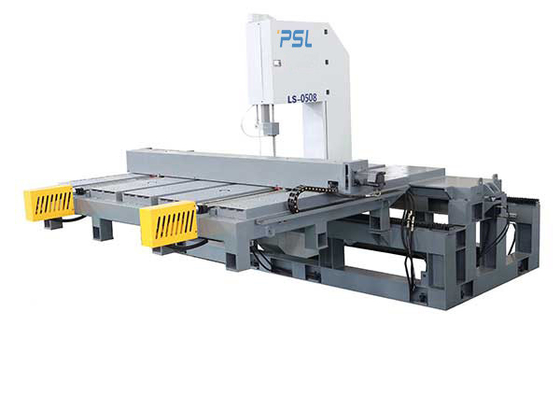

High-speed CNC vertical metal band saw machine sawing Aluminium plate and bar
Purpose of equipment,
It is mainly used for slitting of aluminum alloy plate and bar.
Main technical parameters,
sawing stroke 4000, feeding stroke 4000
(belt breaking protection function)
Equipment supply scope, (state: B-Buyer, S-Seller)
| No. | Name of part | Design | Supply | Unit | Qty. | Remark |
| 1 | High-speed Vertical Band sawing machine | S | S | set | 1 | |
| 1.1 | Sawing bow | S | S | set | 1 | Precision machining of welding structural parts |
| 1.2 | Driving wheels | S | S | set | 1 | Al. Alloy saw belt wheel |
| 1.3 | Main drive system | S | S | group | 1 | Al.Alloy pulley + multi wedge belt |
| 1.4 | Driven wheel | S | S | group | 1 | Al. alloy saw belt wheel + hydraulic auto tension device |
| 1.5 | Substructure | S | S | group | 1 | Precision machining, welding mechanism |
| 1.6 | Feeding slider | S | S | pc | 2 | Linear guider imported from Taiwan |
| 1.7 | Feeding servo unit | S | S | group | 1 | Delta servo motor + precision planetary reducer |
| 1.8 | Raw material feeding mechanism | S | S | group | 3 | Hydraulic driving |
| 1.9 | Inner & outer machine bed | S | S | group | 2 | Welded structure |
| 1.10 | Saw belt cooling device | S | S | set | 1 | Air pressure oil mist cooling |
| 2 | Hydraulic system | S | S | group | 1 | |
| 2.1 | Oil tank | S | S | set | 1 | Made by manufacturer2 |
| 2.2 | Pump station | S | S | group | 1 | Pump: Hitech; Motor: Dongling |
| 2.3 | Temperature control device | S | S | group | 1 | Forced air cooling |
| 3 | Pipelines | S | S | |||
| 3.1 | T.O.P. to the equipment | S | S | group | 1 | Including electricity, compressed air tubes,etc… |
| 3.2 | Internal pipelines | S | S | group | 1 | Preset dust collection pipes |
| 4 | Attached spare parts | S | S | |||
| 4.1 | Sawing band | S | S | band | 2 | Carbide sawing band |
| 4.2 | Cooling oil for Band | S | S | gallon | 2 | |
| 5 | Auxiliary equipment | S | S | Optional configuration | ||
| 5.1 | Auto sawdust collection device | S | S | set | 1 | Option |
