Product Details:
Payment & Shipping Terms:
|
| Name: | CNC Aluminum Plate And Profile Cutting Machine | Product Name: | Professional Cnc Sawing Machine, Aluminum Cnc Sawing |
|---|---|---|---|
| Condition: | New | Equipment: | CNC Machining Center,machine |
| Material Capabilities: | Aluminum,Copper Plate, Wood Panels | Application: | Industrial Aluminum Panels,aluminum Profile Processing |
| Cnc Or Not: | CNC,Yes | Drawing Format: | PDF/DWG/IGS/STP/ Etc |
| Cutting Length: | 1000mm | Utting Width: | 0-600mm |
| Cutting Thickness: | 6mm-150mm | Cutting Speed: | 0~9000mm/min |
| Sawing Tolerance: | 0.05-0.1mm Or Customized | Main Power(w): | 7.5KW |
| Servo Motor: | 0.75kw | Voltage: | AC380V/50HZ,220V/380V/415V |
| Dimension(l*w*h): | 3150×1750×1700mm | Color: | Silvery White, Gray, Customized |
| Weight: | 2500kg | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | Service: | Customized OEM,CNC Machining,Manufacturer |
| High Light: | wood cnc cutting machine,automatic aluminum cutting machine,cnc machine cutting aluminum |
||

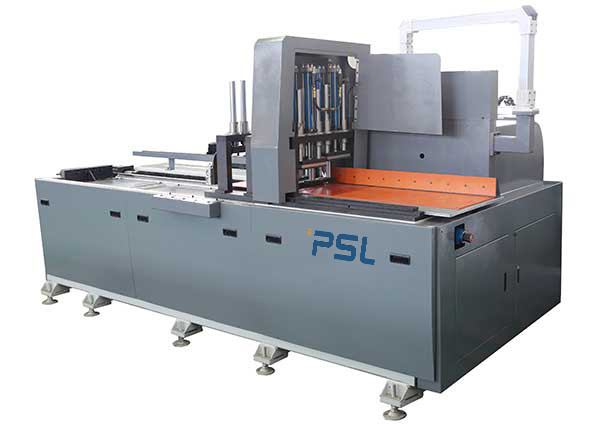

Auto positioning CNC aluminum cutting machine processing of various aluminum plate and profile
Application of Sawing machine
The electronic cutting saw has a wide range of uses. Because of its high rotation speed, the electronic cutting saw can be widely used in: precision cutting of furniture factories, electrical appliances factories, Aluminum machining factories, hardware factories, etc.
Mechanical characteristics:
1 The machine tool consists of the following main components
A. Equipment body
B. Integral pressing system
C. Automatic feeding device
D. Touch Screen/ Control Panel
E. Conveying frame
F. Dust Collector 7.5KW
2 Structural Characteristics of Main Components
A. Equipment body
The main body of the equipment is composed of three parts: the main frame, the head walking mechanism and the saw blade clamping mechanism.
B. Integral pressing system
C. Automatic feeding device
D. Touch Screen | Control Panel
Main technical parameters
| Spec./model | LS-600BNC | |
| Efficary | Cutting length | 1000mm |
| Cutting width | 600mm | |
| Max. cutting height | 150mm | |
| Max. height of the blade | 175mm | |
| Saw blade | Main saw motor | 7.5KW |
| Main blade diameter | Ø510mm | |
| Main saw shaft core dia. | Ø 38mm | |
| Spindle speed | 4000 r/min | |
| Saw seat | Travelling inverter motor | 1.5KW |
| Forward speed | Max. 9 m/min | |
| Backward speed | Max. 17 m/min | |
| Auto feeding servo motor | AC 0.75KW | |
| Air pressure | ≥5.0 kg/cm2 | |
| Table height | 900 mm | |
| Overall dimensions | 3150×1750×1700 | |
| Voltage | 380V/50Hz | |
