| Machine Name: | U Shape CNC Duct Production Line-V | Application: | Energy Supply Pipe, Air-condition Pipe |
|---|---|---|---|
| Producing Materials: | Galvanized Sheet Metal, Stainless Steel Plate | Model: | PSL5-1.2x1250 |
| Condition: | New Line | Control Mode: | CNC System PLC Control |
| Operation: | Automatic | Industry: | Construction Engineering, Air Conditioning, Ventilation Duct |
| Pipe Material: | Galvanized Sheet | Weight Of Full Line: | 9800kg |
| Thickness Of Sheet: | 0.5-1.2mm | Width Of Coil: | 500-1250mm |
| Dimension: | 10x5.0x1.3m | Color Of Line: | Blue, Gray-black_yellow, Customized |
| Usage: | Square Duct Manufacture | Voltage: | 220V/380V/415V/440V, 50HZ/60HZ, Customized |
| Warranty: | 2 Years | After-sales Service: | Engineers Available To Service Machinery Overseas; Media Online Supporting, Video |
| Highlight: | super Auto Duct Line-5 PSL,duct line v PSL,auto duct line 5 PSL |
||

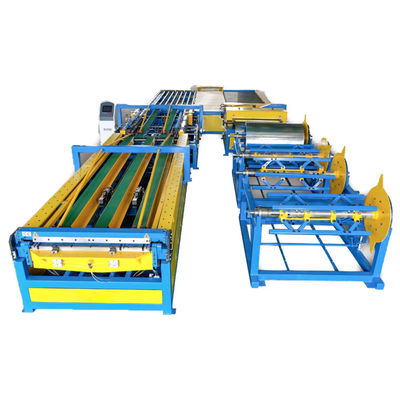

Automatic U shape CNC Duct Production Line-5 fabricating machine Auto Duct LINE-V
Product Description,
Duct or Tube Fabricating Auto Line V can make TDF flange / angle steel flange / C-cleat flange forming. Daily capacity is 1000-2500 square meters.
Users just need to input different sizes that you need.It will automatically proceed decoiling, leveling, notching, shearing, Pittsburgh lock forming,
TDF/Angle steel flange forming and C-cleat flange and folding into rectangular ducts.
Feature of Duct Auto line-V:
● Line's structure；streamline in production and small occupation;
● All coilers being driven by the speed adjustable independent frequency motor;
● the speed of each part is adjustable according to users’request.
● with the material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler
● with the feature of servo motor driven in folding process and accurate positioning, it has the obvious advantage, especially when make “口” shaped duct .
● Its production capacity can reach 2000 M3 each 8 hours with only one worker to operate the machine
● Support production data records export and print function (optional)
Main imported configuration:
● Beijing Huade with hydraulic system
● Omron Encoder
● MITSUBSHI controller
● Taiwan Hiwin linear guider
● Schneider electrical system
BASIC EQUIPMENTS:
Two electric feeding coil candles (2900*1900*950 mm x 2), totally 4 material trays ( 5-8 tons each rolls)
One material supporting frame
One main machine auto line II, including leveling, beading, punching and cutting.
One movable high-speed Pittsburgh lock forming machine
One duplex angle steel flange forming machine
One duplex TDF flange forming machine
One servo motor power material feeder
One hydraulic folding machine
One CNC System and a set of production software Duct Manufacture Auto line VI, auto duct line, duct manufacture coil line 5
Technical parameters:
| Model No. | PSL5-1.2x1250 |
| Max Coil Width | 1250mm |
| Thickness Range | 0.5-1.2mm |
| Speed | 0-18m/min |
| Power | 24.5 kw |
| dimensions | 10*5.0*1.3m |
| Shearing Tolerance | ±0.5mm |
| Diagonal Tolerance | ±0.5mm |
| Weight | 9.8 ton |
