| Condition: | New | Name: | Profile Hydraulic 3-rolls Bending Machine |
|---|---|---|---|
| Type: | HRBM65, Profile 3-rolls Rolling Machine | Application: | Stainless Steel Tube Rolling,carbon Steel Pipe Bending |
| Automation: | Electric, Hydraulic, Manual | Material / Metal Processed: | Profiles Of Carbon Steel,Stainless Steel,Aluminum |
| Machine Type: | Mechanical/hydraulic Rolls Bending Machine | Raw Material: | Profiles /tube/pipe/ Steel Bar Bending |
| Extra Services: | Profiles Machining,round Square Angel Rectangle Steel Forming, | Power: | Electrical, Hydraulic |
| Diameter Of Upper Roller: | 65mm | Bending Round Tube: | 60x2mm, |
| Min. Bending Diameter: | 500mm | Main Motor: | 2.2kw |
| Spindle Speed: | 9.3 R/min | Color: | Customized,blue /OEM |
| Voltage: | 220V/380V/415V/440V/customized,380V/50HZ/3phase 220V/60HZ/3phase | Weight: | 720kgs/890kgs |
| Dimension Of Package: | 1220 * 1100 * 1800mm/wooden Case | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Warranty: | 1 Year | ||
| Highlight: | 3 roller bending machine,three roll plate bending machines,hydraulic plate bender |
||

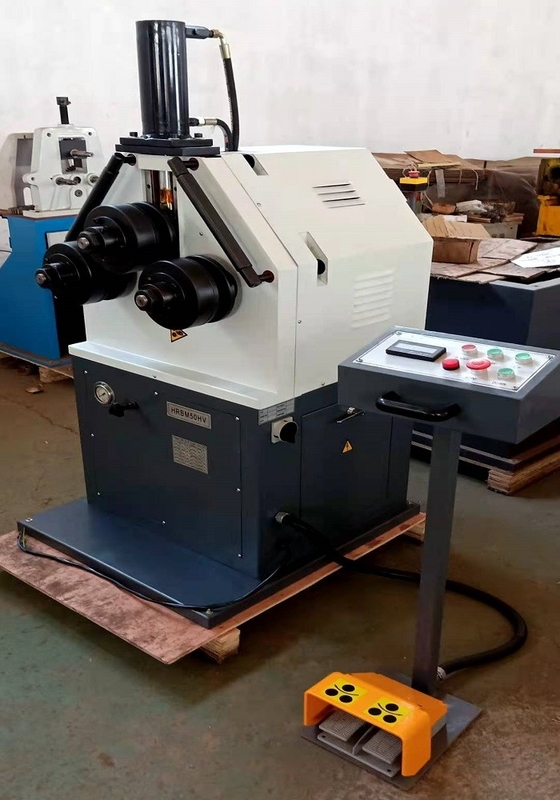

Pipe and Profiles 3-rolls round bending machine HRBM65 Rolling Angel, Square, Rectangle steel
1. The Round bending machine features an electric-hydraulic three-roller-wheel structure.
2. It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work-piece.
3. It can conduct round bending processing for plates, T-shaped materials and so on.
4. Round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.
5. The reversible pedal switch facilitates the operation.
Product Discription:
1. With standard foot pedal
2. With hydraulic motor
3. Steel welded construction frame
4. Top roll hydraulic moveable
5. Horizontal and vertical operation
6. Shafts are hardened with special steel material
7. Rollers are special steel material hardened and grounded
8. Gears Milled with full material
9. Optional rollers for choice
Specification of HRBM65HV:
| Model | HRBM65HV | |
| Dia. Of roller | ￠65 mm | |
| Power | 2.2kw/3HP | |
| Spindle speed | 9.3r/min | |
| Packing Size | 125x115x180cm | |
| N.W./G.W. | 720/920KGS | |
| Capacity | Size(mm) | Min Dia.(mm) |
 |
80x25 40x10 |
600 500 |
|
120x25 50x10 |
600 400 |
|
50x50 20x20 |
600 400 |
| T-type steel |
80x40x7 40x40x5 |
500 400 |
| T-type steel |
80x40x7 40x40x5 |
400 360 |
|
100x50x6 50x40x5 |
600 500 |
|
100x50x6 50x40x5 |
600 500 |
|
70x6 40x5 |
500 400 |
|
70x6 40x5 |
600 500 |
|
￠50 ￠20 |
600 400 |
|
70x70x3 30x30x3 |
900 500 |
|
80x40x3 | 800 |
| 50x30x2 | 500 |
Optional accessories:
Special roller:
| Model | HRBM65 | |
| Profile | Size | Min Dia.(mm) |
|
3-1/2”x2” 2-1/8”x2” ￠100x2mm ￠60x2mm |
900 500 1000 500 |
