Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Name: | Profile Full Hydraulic Bending Machine |
|---|---|---|---|
| Type: | W24S-16, Profile Rolling Machine | Application: | Carbon Steel Pipe Bending, SS Tube Bending |
| Material / Metal Processed: | Profiles Of Carbon Steel,Stainless Steel,Aluminum | Machine Type: | Full Hydraulic Rolls Bending Machine |
| Raw Material: | Profiles /tube/pipe/ Rolling,Steel Bar | Extra Services: | Profiles Machining,Round Tube Forming, |
| Automation: | Electric, Hydraulic | Power: | Electrical, Hydraulic |
| Diameter Of Upper Roller: | 150mm | Mold Diameter: | 350mm |
| Bending Round Tube: | 76x4.5mm, | Bending Speed: | 5 M/min |
| Pressure Of Hydraulic System: | 19.5MPa | Main Motor: | 7.5kw |
| Voltage: | 220V/380V/415V/440V/customized,380V/50HZ/3phase 220V/60HZ/3phase | Color: | Customized,blue /OEM |
| Dimension: | 1000 * 800 * 1600mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Warranty: | 1 Year | ||
| Highlight: | cnc profile bending machine,cnc aluminum profile bending machine,hydraulic profile bending machine |
||

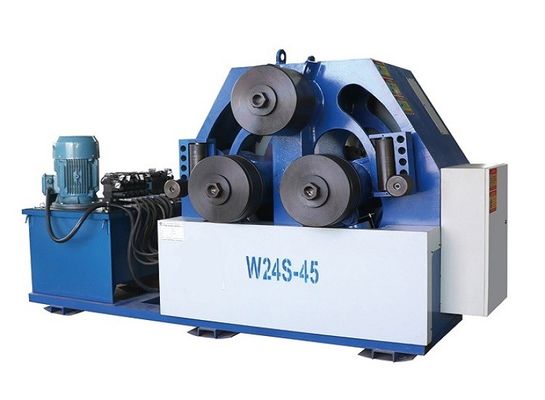

W24S Series full hydraulic profile bending machine pipe rolling machine
• 1 set of standard hardened and ground rolls (special steel)
• All rolls Planetary/Gear – Hydro motor Driven
• 3-axis hardened side supports with hydraulic forward-backward movement and mechanical up-down and right-left movement
• Side supports are suitable for angle iron bending leg in -Leg Out
• Portable control panel
• Horizontal and Vertical operation
• Body constructed of stress-relieved steel
• Overload protection on hydraulic and electrical systems
• Bottom rolls hydraulically adjustable with digital readout
Working process:
Step 1:
the right side roller in the position of the lowest,the left side roller and main roller to clamp the work piece tight.
Step2:
the right side roller lift slowly and begin to roll.The pre-bending realized between the main roller and left side roller.
step3:
left side roller dropping,and at the same time,the right side roller lifting.Feed the plate into the left side roller,the three rollers begin to roll at the same time and the pre-bending realize between main roller and right side roller.
Step 4:
complete the pre-bending and rolling.
Processing capacity:
|
Angle, inner bending
|
Max.section size | 70x8mm |
|
Angle , outer bending
|
Max.section size | 80x8mm |
|
Channel, outer bending
|
Channel size | 12# |
|
Channel, inner bending |
Channel size | 12# |
| Plate, flat bending | Max. Section size | 150x25mm |
| Plate, vertical bending | Max. Section Dia. | 75x16mm |
| Tube bending | Max. Section size | 76x4.5mm |
| Rod bending | Max. Section size | 52mm |
| Square bending | Max. Section size | 60x4mm |
Main Technical parameters ,
|
Technical Parameter:
|
W24S
|
||||||
|
6
|
16
|
30
|
45
|
75
|
100
|
||
|
Profile bending Mold(Max)
|
6
|
16
|
30
|
45
|
75
|
100
|
|
|
Coiling Speed(m/min)
|
6
|
5
|
|||||
|
Yielding Limit of Sheet Matal(mpa)
|
S=250
|
||||||
 |
Profile(Max) mm
|
40*5
|
70*8
|
80*8
|
90*10
|
100*10
|
120*12
|
|
Bending diameter (Min)mm
|
800
|
1000
|
1200
|
1500
|
2000
|
2500
|
|
|
Profile(Min)mm
|
20*3
|
30*3
|
35*3
|
36*5
|
38*4
|
40*5
|
|
|
Bending diameter (Min)mm
|
400
|
550
|
560
|
600
|
600
|
720
|
|
|
|
Profile(Max)mm
|
50*5
|
80*8
|
90*10
|
100*10
|
120*12
|
140*16
|
|
Bending diameter (Min)mm
|
800
|
1000
|
1100
|
1300
|
1600
|
1800
|
|
|
Profile(Mix)mm
|
20*3
|
30*3
|
35*3
|
36*5
|
38*4
|
45*5
|
|
|
Bending diameter (Min)mm
|
400
|
550
|
500
|
600
|
700
|
760
|
|
|
|
槽钢型号
|
8
|
12
|
16
|
20
|
25
|
28
|
|
Bending diameter (Min)mm
|
600
|
800
|
800
|
1000
|
1100
|
1700
|
|
|
|
Material
|
8
|
12
|
16
|
20
|
25
|
28
|
|
Bending diameter (Min)mm
|
700
|
900
|
1000
|
1150
|
1600
|
1700
|
|
|
|
Profile(Max)mm
|
100*18
|
150*25
|
180*25
|
200*30
|
220*40
|
250*40
|
|
Bending diameter (Min)mm
|
600
|
700
|
800
|
900
|
1000
|
1200
|
|
|
|
Profile(Max)mm
|
50*12
|
75*16
|
90*20
|
100*25
|
110*40
|
120*40
|
|
Bending diameter (Min)mm
|
500
|
760
|
800
|
1000
|
1100
|
1300
|
|
|
|
Profile(Max)mm
|
42*4
|
76*4.5
|
89*5
|
89*8
|
114*5
|
159*5
|
|
Bending diameter (Min)mm
|
500
|
750
|
900
|
900
|
1200
|
2000
|
|
|
|
Profile(Max)mm
|
38
|
52
|
62
|
75
|
85
|
90
|
|
Bending diameter (Min)mm
|
450
|
600
|
600
|
800
|
1000
|
1100
|
|
|
|
Profile(Max)mm
|
45*3
|
60*4
|
70*4
|
80*6
|
90*8
|
100*10
|
| Bending diameter (Min)mm |
750
|
900
|
1000
|
1200
|
1600
|
2000
|
|
