Product Details:
Payment & Shipping Terms:
|
| Product Name: | Robot CNC Fiber Laser Welding Machine | Machine Type: | HC-RW-3000W |
|---|---|---|---|
| Condition: | New | Application: | Manufacturing Plant, Advertising Industries,Hardware, Furniture |
| Keyword: | Robot Welding, Laser Welding Machine, Laser Welder, Light Welding | Key Selling Points: | Robot Automatic Operation |
| Function: | Metal Welding, Metal Sheet Tube Laser Welding | Cnc Or Not: | Yes |
| Laser Source: | Raycus, IPG | Operation System: | Touch Screen Interface |
| Laser Power: | 3000W | Wavelength: | 1070nm |
| Welding Interface: | QBH, Robot | Welding Head Configuration: | Robot Welding + Double Water Cooling Inside |
| Laser Mode: | Continuous | Max.welding Thickness: | 0.5-3mm |
| Focal Spot Diameter:: | 0.2-2.5mm, Adjustable | Targeting: | Red Light |
| Cooling Mode: | Hanli Water Chiller,Water-cooling And Protection System | Color: | Standard Color, Or Customized |
| Maintenance: | Remote Online Diagnosis And Detection | Warranty: | 1 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | CE, ISO,SGS,CCC |
| High Light: | 1500w handheld laser welder,1500w laser welding machine,handheld fiber laser welding and cutting machine |
||

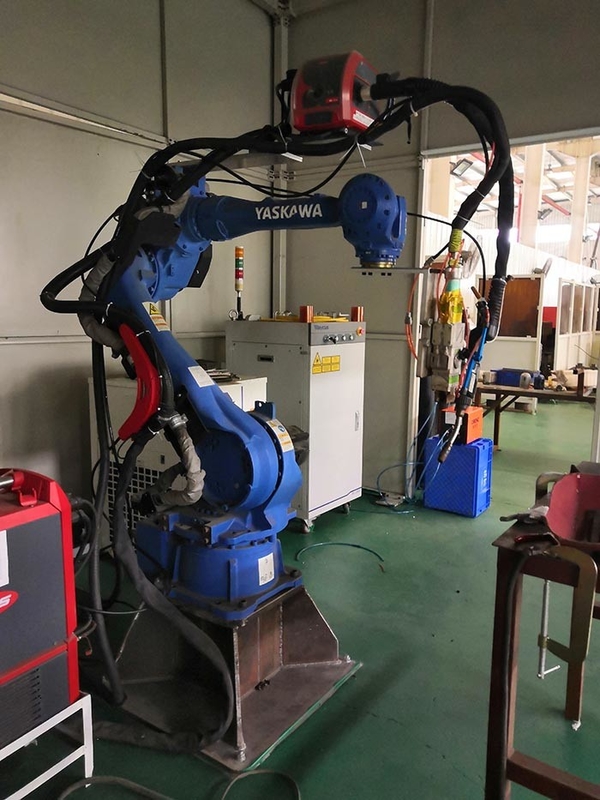

Robot automatic fiber laser welding machine CNC Laser metal sheets & tubes welding machine
Laser welding - process introduction,
Laser technology uses a polarizer to reflect the beam generated by the laser to concentrate it in the focusing device to produce a beam of huge energy. The workpiece melts and evaporates in a few milliseconds, so this effect can be used in the welding process.
The characteristic of laser welding is that the deformation of the welded workpiece is very small, there is almost no connection gap, and the welding depth / width ratio is high, so the welding quality is higher than that of traditional welding methods.
Laser welding can be realized by continuous or pulsed laser beam. The principle of laser welding can be divided into heat conduction welding and laser deep penetration welding.
The commonly used laser welding methods are mainly divided into three categories,
1. Laser self fusion welding. This welding method needs less test parameters to be adjusted and the welding operation is simple. It is often used to weld thin plate materials.
2. Laser wire filling welding, this kind of welding method is to add welding wire to the metal molten pool through the automatic wire feeding device during the welding process, and make it melt and weld by using the heat energy of the laser beam.
3. Laser hybrid welding, that is, composite laser beam and other welding heat sources, is commonly used in materials that are difficult or difficult to weld by the first two welding methods, such as thicker stainless steel and light alloy.
Laser + arc hybrid welding - equipment capability,
At present, PSL laser is equipped with many sets of high-power Robot laser welding equipment, covering laser self fusion welding, laser wire filling welding, laser CMT arc composite welding and other processes. It can weld carbon steel, aluminum alloy, copper alloy, titanium alloy, stainless steel, nickel base alloy pipe and other materials.
