| Condition: | New | Product Name: | Fiber Laser Metal Cutting Machine,metal Sheet And Tube Laser Cutting Machine |
|---|---|---|---|
| Mainbody: | Steel Plates Welded Structure | Control: | Cypcut CNC Control System |
| Keyword: | Laser Sheet Metal Cutting,laser Cutting Machine | Control Software: | Cypcut,Cypnest |
| Laser Source: | IPG, Raycus, Max | Cooling Mode: | Water Cooling,Water-cooling And Protection System,Industrial Water Chiller |
| Graphic Format Supported: | AI,DXF,PLT,DST,CAD | Color: | Standard Color, Or Customized |
| Application: | Laser Cutting, Laser Engraving | Function: | Cutting Metal Materials,Cutting And Engraving |
| Cutting Thickness: | Materials,0-12mm Carbon Steel, 0-6mm Stainless Steel | Working Area: | 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm |
| Laser Power: | 1000W / 2000W / 3000W | Driving System: | Yaskawa.Delta,Fuji.Panasonic Servo Units |
| Driving: | X,Y,Z All Servo Motor | Cutting Area: | L3050mm*W1550mm |
| Tube Shapes: | Round Tube, Square Tube, Elliptical Tube, Anisotropic Tube | Cutting Tube Length: | 1000-9000mm |
| Cutting Tube Diameter: | 20-120mm | Maintenance: | Remote Online Diagnosis And Detection |
| Certification: | ISO,SGS,CCC | Warranty: | 1-2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| High Light: | cnc sheet metal laser cutting machines PSL,cnc tube cutting laser machines,cnc laser tube cutting machines |
||

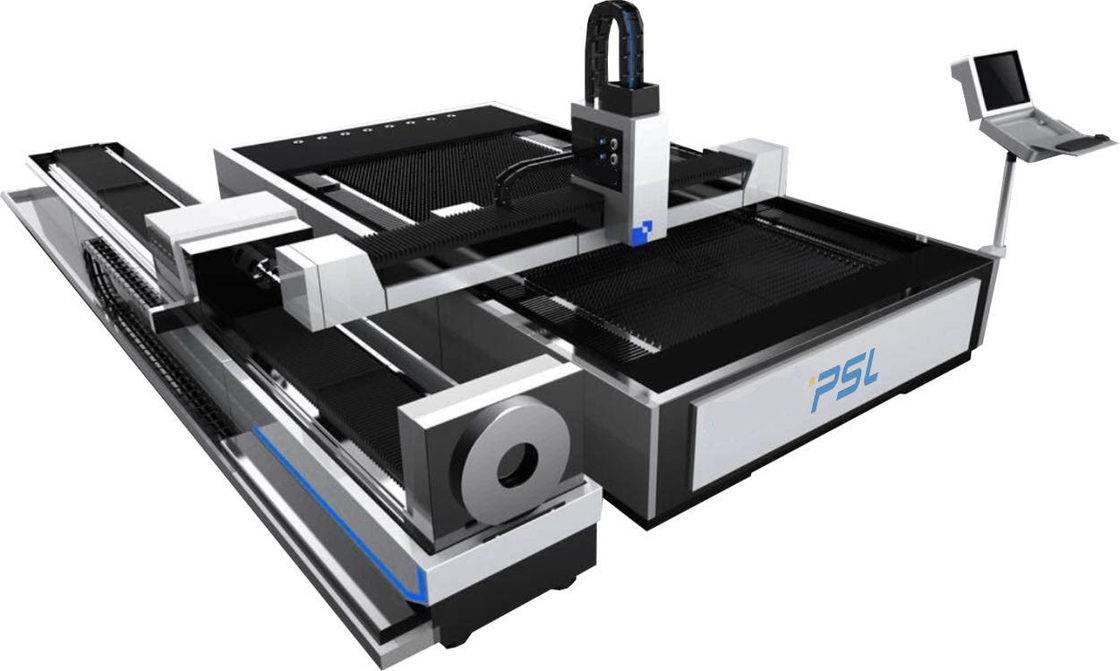

CNC metal plate and tube integrated laser cutter CNC Single-table Fiber Laser Cutting machine
Main technical characteristic,
Applicable Industry:
This machin is widely used in various industries such as advertising decoration,kitchen ware,engineering machinery,steel and iron,automobile,metal plate chassis, metal tube fabriction, air-conditioner manufacturing,metal plate/tube cutting,etc.
Applicable Materials:
Carbon steel plates & tube/pipe: 0-12mm;
Stainless steel plate & tube/pipe: 0-6mm.
Aluminum plate & tube/pipe: 0-4mm
Professional used to cut thin sheet metal, aluminum alloy plate/tube, galvanized sheet/tube, electrolytic plate, silicon steel, titanium alloy, aluminium zinc plate and other metal.
Machine structure,
The machine consists of bed, worktable, beam, sliding seat, ram, cooling system, pneumatic system, slag discharge system, dust removal system, support plate and other components.
1.1. Machine Bed
The machine bed adopts integral welding structure, high temperature back quenching treatment, and then vibration aging treatment. It has good rigidity and high precision, and can be used for a long time without deformation.
1.2. Fixed workbench
The machine adopts gantry structure, Taiwan YYC high-precision high-speed rack and pinion (Herion) double-sided drive and linear guide, with stable transmission and high precision.
Fixed worktable main frame: the whole bending process of ultra thick plate is adopted, and then the whole welding is formed, so as to have great bearing capacity.
1.3. Tube/Pipe cutting Device
Automatic chuck
The pneumatic automatic chuck is able to clamp the round tube, square tube and oval-shaped tube quickly.
The patented chuck technology has four claws for automatic centering, which can support round tube, square tube and oval-shaped tube. The circular tube and other materials automatically implement the clamping centering function.
The thin chuck design can easily enter the inside of the fixed chuck to realize the cutting of the tail.
Fixed chuck
The fixed chuck adopts four claws to clamp the pipe, and the claw end is equipped with roller mechanism and can clamp and center quickly.
The chuck has a servo motor drive and movable chuck, they two can whirl at the same time , which can achieve rapid rotation of the pipe cutting without distortion of the pipe.
1.4. Cross-Beam
The crossbeam is welded as a whole. After two times of high temperature quenching and vibration aging, the crossbeam is formed by high precision processing, with good rigidity, high strength and dynamic performance.
Lengthened Cross-beam (Y-axis) to process and cut pipes.
1.5. X, Y, Z axis motion control
X, Y axis and Z axis adopt high torque servo motor, with high precision, high speed, large torque, large inertia, stable and durable performance. It ensures the high speed and acceleration of the whole machine.
1.6. Waste discharge system
The lower part of the bed is equipped with a cart, which can collect the waste in the production process and small parts.
1.7. Dust removal system
FCL3015 CNC laser cutting machine workbench has a special partition dust removal system, which is used to remove dust, waste gas and other substances in the production process, so as to make the working environment comfortable.
Main components,
| 1.Controller |
Cypcut control system -Which can realize intelligent layout of graphics,automatically choosing and matching cutting paths, save processing time |
| 2.Laser Source |
Famous Brand Raycus / Max / IPG -Solid state laser lasts over 50,000hrs; Various power options of 500w, 750w, 1000w,1500W,2000W,3000W etc |
| 3.Auto focusing |
Capacitive Auto-height adjusting Raytools cutting headCutting Head -Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal. |
| 4.Servo system |
Japan YASKAWA Servo driver and motor -With strong power and high precision |
| 5.Reducer |
Japan Shimpoo / MOTORE Reducer -The world best reducer brand.Used for replace traditional rack and belt,to make machine more powerful and stable |
| 6.High accuracy |
Precision cutting -Which can reach ±0.02mm/300mm
|
| 7. Cooling system |
Hanli / Tongfei Double circulation system, heat exchange titanium tube, over temperature alarm, flow protection, water level protection fiber laser special cooling water tank |
| 8. Voltage Regulator | Optional for some Areas with unstable voltage |
Main technology parameters,
| Name | Fiber laser Metal Sheet & Tube cutting machine | |
| model | FCLT3015-2000W | |
| power of laser | 2000w | |
| laser source | RAYCUS/IPG | |
| BPP,mm*mrad | 1.27 | |
| Laser wavelength | 1070nm | |
|
Maxim Cutting Thickness (Sheet & Tube) |
Carbon steel(O2) | 10-12mm |
| Stainless steel(N2) | 5-6mm | |
| Aluminum sheet/Tube | 3-4mm | |
| Brass Sheet/Tube | 2mm | |
| Maxim cutting speed | 60-80m/min(according to materials) |
| Max. acceleration | 1.0G |
| Energy instability | ≤2% |
| supported graphic formats | CAD,CorelDraw software,DXF/DWG/PLT |
| cutting area | 3050×1550 |
| X axis travelling | 3050 |
| Y axis travelling | 1550mm |
| Z axis travelling | 120mm |
| accuracy of re-position | ±0.03mm/m |
| accuracy of position X/Y axis | ±0.03mm/m |
| Max. loading weight of workbench | 500KG |
| power of the machine | 350V-420V/50Hz |
| Weight of machine | 3500kg |
| Dimensions | 4600x2400x1500mm |
