| Condition: | New | Product Name: | Fiber Laser Metal Cutting Machine,6mm Stainless Steel Laser Cutting Machine |
|---|---|---|---|
| Keyword: | Laser Sheet Metal Cutting,laser Cutting Machine | Control: | Cypcut CNC Control System |
| Driving: | X,Y,Z All Servo Motor | Control Software: | Cypcut,Cypnest |
| Application: | Metal Laser Cutting, Laser Engraving | Function: | Cutting Metal Materials,Cutting And Engraving |
| Configuration: | Gantry Type | Laser Type: | Fiber Laser |
| Laser Source Brand: | IPG, Raycus, Max | CNC Or Not: | CNC |
| Graphic Format Supported: | AI,DXF,PLT,DST,CAD | Nesting Software: | CYPNEST |
| Laser Cutting Head: | WSX, Raytools, Precitec | Cutting Thickness: | Materials,0-12mm Carbon Steel, 0-6mm Stainless Steel |
| Working Area: | 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm | Laser Power: | 1000W / 2000W / 3000W/ 6000W |
| Cutting Speed: | 0-120000mm/min,Difference Material Difference Speed | Cutting Area: | L3050mm*W1550mm |
| Driving System: | Panasonic/ Delta/Fuji Servo Units | Cooling Mode: | Water Cooling Chiller,Water-cooling And Protection System,Industrial Water Chiller |
| Color: | Standard Color, Or Customized | Maintenance: | Remote Online Diagnosis And Detection |
| Certification: | ISO,SGS,CCC | Warranty: | 2 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| Highlight: | cnc fiber laser machine cutting,fiber laser cutting machine 3000w,cnc fiber metal laser cutting machine |
||

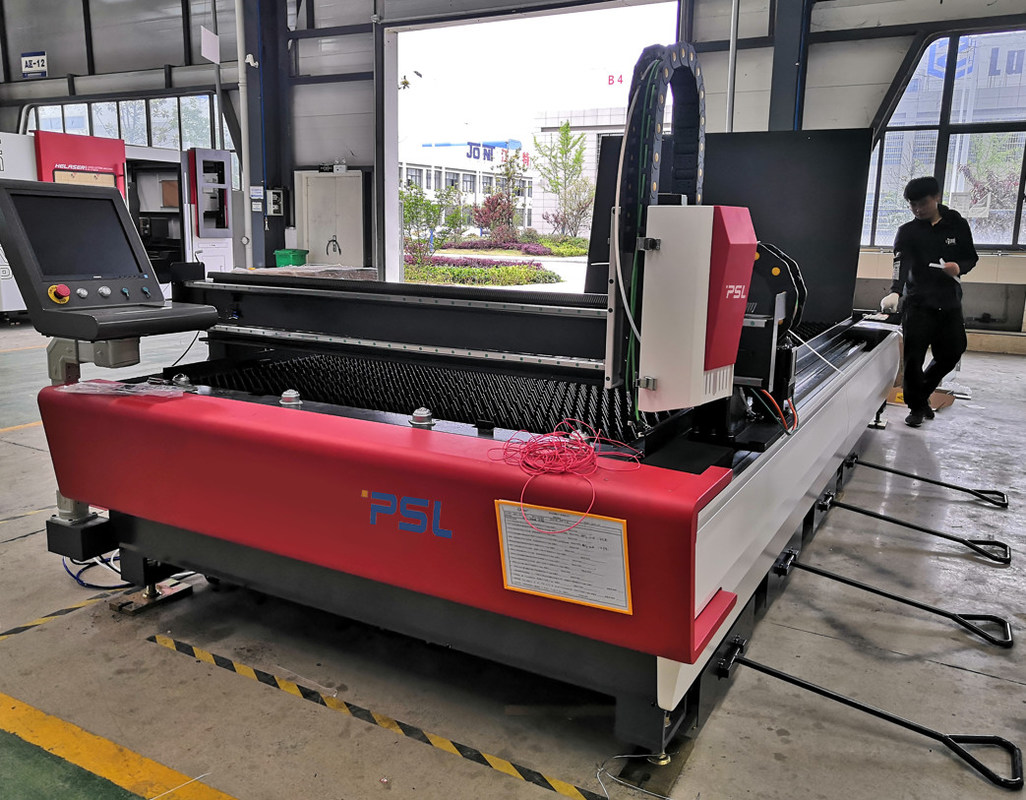

Carbon steel Stainless steel Aluminum plates Processing CNC Fiber Laser Cutting machine
Machine Features,
Fiber laser cutting machine has extensive use in cutting metal materials, such as steel, carbon steel, stainless steel, copper, aluminum, and other various alloys, whether in sheet, tube or pipe shapes.
It falls into several types based on functions and appearance. For example, the fiber laser machine for cutting sheet, pipe, sheet & pipe, and the ones with exchange platforms, protective cover, high precision, etc.
Integrated fuselage design, greatly saving space.
Machine structure,
Structure of machine
The Laser cutting machine consists of bed, workbench,cross-beam, sliding seat, CNC operation system, Electrical control system, cooling system, pneumatic system, slag discharge system, dust removal system, support plate and other components.
Main technology parameters,
| Name | CNC Fiber laser cutting machine | |
| Type | FCL3015-2000W | |
| laser source | RAYCUS/IPG/MAX | |
| Laser wavelength | 1070nm | |
|
|
||
| Maxim cutting speed | 60-80m/min(according to materials) |
| Max. running speed | 120m/min |
| Max. acceleration | 1.2G |
| Energy instability | ≤2% |
| supported graphic formats | CAD,CorelDraw software,DXF/DWG/PLT |
| cutting area | 3000×1500 |
| X axis travelling | 3050 |
| Y axis travelling | 1550mm |
| Z axis travelling | 120mm |
| accuracy of re-position | ±0.03mm/m |
| accuracy of position X/Y axis | ±0.03mm/m |
| Max. loading weight of workbench | 500KG |
| power of the machine | 350V-420V/50Hz |
| Weight of machine | 3500kg |
| Dimensions | 5600x2350x1600mm |
