| Condition: | New | Product Name: | Fiber Laser Metal Cutting Machine,6mm Stainless Steel Laser Cutting Machine |
|---|---|---|---|
| Keyword: | Laser Sheet Metal Cutting,laser Cutting Machine | Mainbody: | Steel Plates Welded Structure |
| Control: | Cypcut CNC Control System | Driving: | X,Y,Z All Servo Motor |
| Control Software: | Cypcut,Cypnest | Application: | Metal Laser Cutting, Laser Engraving |
| Function: | Cutting Metal Materials,Cutting And Engraving | CNC Or Not: | CNC |
| Configuration: | Gantry Type | Laser Source: | IPG, Raycus, Max |
| Graphic Format Supported: | AI,DXF,PLT,DST,CAD | Laser Cutting Head: | WSX, Raytools, Precitec |
| Cutting Thickness: | Materials,0-20mm Carbon Steel, 0-12mm Stainless Steel | Working Area: | 1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm |
| Laser Power: | 1000W / 2000W / 3000W/ 6000W | Cutting Speed: | 0-80000mm/min,Difference Material Difference Speed |
| Cutting Area: | L4000mm*W2000mm | Driving System: | Yaskawa/ Delta/Fuji Servo Units |
| Cooling Mode: | Water Cooling Chiller,Water-cooling And Protection System,Industrial Water Chiller | Color: | Standard Color, Or Customized |
| Maintenance: | Remote Online Diagnosis And Detection | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Certification: | ISO,SGS,CCC | Warranty: | 2 Years |
| High Light: | cnc fiber metal laser cutter,cnc sheet metal laser cutter,6kw laser cutter |
||

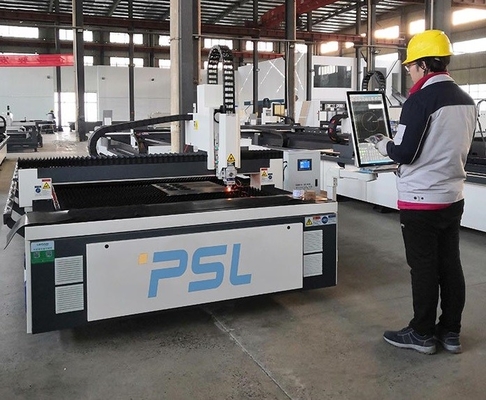

Metal Laser Cutter 6000W CNC Fiber Laser Cutting machine fabricating Sheet metal
Machine Features,
1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single workbech makes plates loading and unloading available during cutting, which improves the processing efficiency.
4. Large-size closed enclosure improves dedusting effects and avoids optical pollution.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
6. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
7. It could cut mental in various materials and realize excellent and stable cutting effects.
8. Users-friendly operating interface, USB port and broadband interfaces
9. X,Y,Z- axes with AC servo motor and driver;
10. Fast-response surface following;
11. Cypcut Programming software and automatic nesting functions;
12. CAD/CAM software with powerful nesting function and edge-shared cutting function;
Machine structure,
Structure of machine
The Laser cutting machine consists of bed, workbench,cross-beam, sliding seat, CNC operation system, Electrical control system, cooling system, pneumatic system, slag discharge system, dust removal system, support plate and other components.
Main technology parameters,
| Name | CNC Fiber laser cutting machine | |
| laser source | RAYCUS/IPG/MAX | |
| BPP,mm*mrad | 1.27 | |
| Laser wavelength | 1070nm | |
|
|
||
| Maxim cutting speed | 60-80m/min(according to materials) |
| Max. running speed | 120m/min |
| Max. acceleration | 1.2G |
| Energy instability | ≤2% |
| supported graphic formats | CAD,CorelDraw software,DXF/DWG/PLT |
| cutting area | 4000×2000 |
| X axis travelling | 4000 |
| Y axis travelling | 2000mm |
| Z axis travelling | 120mm |
| accuracy of re-position | ±0.03mm/m |
| accuracy of position X/Y axis | ±0.03mm/m |
| Max. loading weight of workbench | 1000KG |
| power of the machine | 350V-420V/50Hz |
| Weight of machine | 6500kg |
| Dimensions | 8500x3200x1600mm |
Main components,
| Name | Brief description | Brand of country |
| Optical system | RAYCUS/IPG | MAX/RAYCUS/IPG |
| Laser power supply | 1kw/2kw/3kw/6kw | MAX/RAYCUS/IPG |
| Autofocus cutting head | Special cutting head for optical fiber | WSX/Raytools/Precitec |
| Dedicated cooling system | Double circulation system, heat exchange titanium tube, over temperature alarm, flow protection. | Hanli/Tongfei |
| Mechanical transmission system |
Taiwan Hiwin high-precision high-speed rail Taiwan YYC rack and Pinion (Helican) |
Taiwan Hiwin Taiwan YYC
|
| Deceleration system | Flange reducer | MOTORE |
| Proportional Valve | SMC | Japan |
| Electrical installation | Schneider | France |
| Tracking sensor system | High precision automatic induction, accuracy 0.1 mm | Shanghai CYPCUT |
| Slag discharge device | Standards | The manufacturer |
| Computer System | Special Industrial PC for laser | Taiwan Yanxiang |
| X-AXIS | 1000W servo unit | Fuji/Delta/Yaskawa |
| Y-AXIS |
1800W servo unit |
Fuji/Delta/Yaskawa |
| Z-AXIS | 400W servo servo unit | Fuji/Delta/Yaskawa |
| Cutting software | Professional CNC cutting software | Shanghai CYPCUT |
| Nesting software | CYPNEST (Optional) | Shanghai FSCUT |
| I / O card | 32 points | PSL |
| Voltage Regulator | China | |
| Cutting machine | Precision Gantry | PSL |
