Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fiber Laser Metal Cutting Machine,3mm Stainless Steel Laser Cutting Machine | Condition: | New |
|---|---|---|---|
| Mainbody: | Steel Plates\ Tubes Welded Structure | Control: | Cypcut CNC Control System |
| Function: | Cutting Metal Materials,Cutting And Engraving | Driving: | X,Y,Z All Servo Motors |
| Control Software: | Cypcut,Cypnest | Keyword: | Laser Sheet Metal Cutting,laser Cutting Machine |
| Laser Source: | IPG, Raycus, Max | Laser Power: | 500W / 1000W / 2000W / 3000W |
| Working Area: | 2000mmX4000mm / 2000mmmX6000mm | Cooling Mode: | Water Cooling,Water-cooling And Protection System,Industrial Water Chiller |
| Driving System: | Yasukawa/Fuji/Delta Servo Driving | Graphic Format Supported: | AI,DXF,PLT,DST,CAD |
| Cutting Thickness: | Materials,0-10mm Carbon Steel, 0-5mm Stainless Steel | Color: | Standard Color, Or Customized |
| Application: | Laser Cutting, Laser Engraving | Maintenance: | Remote Online Diagnosis And Detection |
| Certification: | ISO,SGS,CCC | Warranty: | 2 Years,3 Years |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| High Light: | 500w laser cutter,4x8 cnc laser cutter,fiber laser cutter 1000w |
||

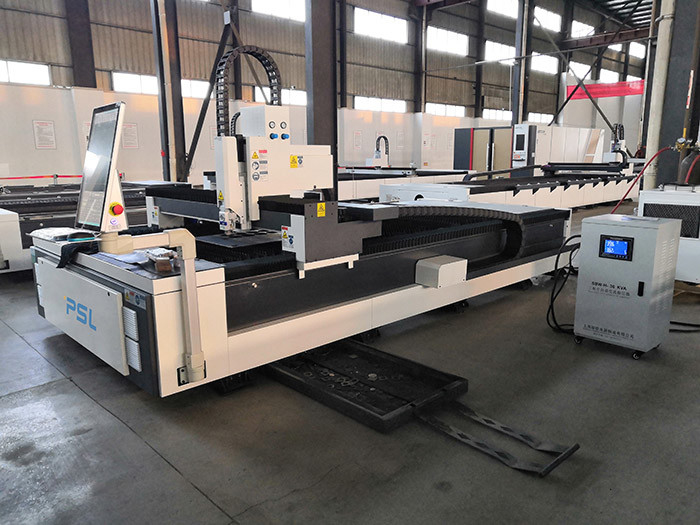

Sheet Metal Fabricating CNC Fiber Laser Cutting Machine
Main technical characteristics of Laser cutting machine,
1. Integrated welding machine body with higher stability for higher precision
Application of gantry structure and integrated cast cross-beam to achieve higher rigidity, stability.
2. High-performance laser source and stable operating system which make the best cutting quality.
3. The machine owns CNC controlling system, servo transmission system, water cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The specialized CAD / CAM automatic programming software and automatic nesting software aims to maximally save raw materials.
5. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
6. The machine is used for cutting a variety of metals with excellent and stable cutting quality.
7. Access to the CNC system through interface makes communication and remote monitoring possible during the laser cutting process.
Machine structure,
The machine consists of bed, worktable, cross-beam, sliding seat, ram, CNC system, cooling system, pneumatic system, slag discharge system, dust removal system, support plate and other components.
1. Machine Bed
The machine bed adopts integral welding structure, high temperature back quenching treatment, and then vibration aging treatment..
2. Fixed Single workbench
The machine adopts gantry structure, Taiwan YYC high-precision high-speed rack and pinion (helicon) double-sided drive and linear guide, with stable transmission and high precision.
Fixed worktable main frame: the whole bending process of ultra thick plate is adopted, and then the whole welding is formed, so as to have great bearing capacity.
3. Cross-Beam
The crossbeam is welded/casted as a whole. After two times of high temperature quenching and vibration aging, the crossbeam is formed by high precision processing.
4. X, Y, Z axis motion control
X, Y axis and Z axis adopt high torque servo motors, with high precision, high speed, large torque, large inertia, stable and durable performance. It ensures the high speed and acceleration of the whole machine.
5. Waste discharge carts
The lower part of the bed is equipped with carts, which can collect the waste in the production process and small parts.
6. Dust removal system
Our CNC laser cutting machine workbench has a special partition dust removal system, which is used to remove dust, waste gas and other substances in the production process, so as to make the working environment comfortable.
Main technology parameters,
| Machine Name | CNC fiber laser cutting machine | |
| Model | FCL4020-1000W | |
| power of laser | 1000w | |
| laser source | MAX/RAYCUS/IPG | |
| BPP,mm*mrad | 1.27 | |
| Laser wavelength | 1070nm | |
|
Maxim Cutting Thickness |
carbon steel(O2) | 8mm-10mm |
| stainless steel(N2) | 4mm-5mm | |
| Aluminum sheet | 2mm-3mm | |
| Brass sheet | 2mm | |
| Maxim cutting speed | 60-80m/min(according to materials) |
| Max. acceleration | 1.0G |
| Energy instability | ≤2% |
| supported graphic formats | CAD,CorelDraw software,DXF/DWG/PLT |
| cutting area | 4000×2000 |
| X axis travelling | 4010 |
| Y axis travelling | 2010mm |
| Z axis travelling | 120mm |
| accuracy of re-position | ±0.03mm/m |
| accuracy of position X/Y axis | ±0.03mm/m |
| Max. loading weight of workbench | 500KG |
| power of the machine | 350V-420V/50Hz |
| Weight of machine | 4500kg |
| Dimensions | 5600x2950x1500mm |
Main components,
| Name | Brief description | Brand of country |
| Fiber Laser | IPG2000W | RAYCUS/IPG |
| Optical system | RAYCUS/IPG | RAYCUS/IPG |
| Laser power supply | RAYCUS/IPG | RAYCUS/IPG |
| Autofocus cutting head | Special cutting head for optical fiber | WSX/Raytools |
| Dedicated cooling system | Double circulation system, heat exchange titanium tube, over temperature alarm, flow protection | Wuhan Hanli/Tongfang |
| Mechanical transmission system |
Taiwan Hiwin high-precision high-speed rail Taiwan YYC rack and Pinion (helical) |
Taiwan Hiwin Taiwan YYC |
| Deceleration system | Shimpoo Flange reducer in Japan | Japan |
| Proportional Valve | SMC | Japan |
| Electrical installation | Schneider/ABB | France |
| Tracking sensor system | High precision automatic induction, accuracy 0.1 mm | Shanghai CYPCUT |
| Computer System | Special Industrial Control Computer for laser | Taiwan Yanxiang |
| X-AXIS SERVO unit | 1000W servo | Yaskawa/Fuji, Japan |
| Y-AXIS SERVO unit |
1800W SERVO |
Yaskawa/Fuji, Japan |
| Z-AXIS SERVO unit | 400W servo | Yaskawa/Fuji, Japan |
| Cutting software | Professional CNC cutting software | Shanghai CYPCUT |
| I / O card | 32 points | CYPCUT |
| Voltage Regulator | Optional | China |
| Cutting machine | Precision Gantry | Manufacturer |
