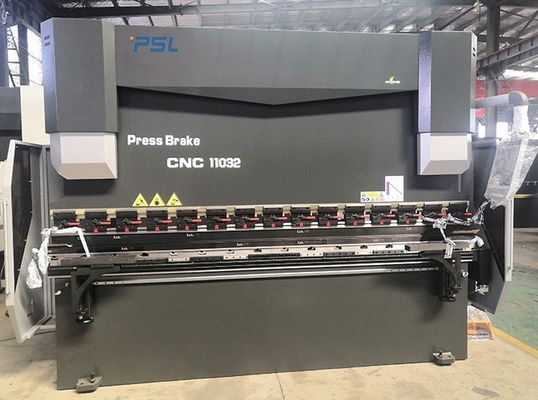

110 Ton CNC Hydraulic Press Brake Delem Da53t Da58t 66t Delem Cybelec 4+1 6+1 Axis

Multi axes CNC Electro-Hyraulic Press brakes fabricating machine Delem Cybelec 4+1,6+1 axes

   FEATURES AT A GLANCE,

   1. Main body is manufactured by the CNC floor Boring and Milling machine.

2. Technical utilize parametric 3D SolidWorks analysis.

3. Adopt integrated Rexroth or Hoerbiger hydraulic system, more reliable and easy for maintenance.

4. The complex compensation working-table are designed so as to raise the working piece precision.

5. The stroke and distance and up/down of the back gauge is adjusted by servo motor.

    6.   The bakc-gauge fingers has high parallelism and quick adjustment on Linear guider.

7. Inch, single, continuous operation mode being designed for the machine and reversing and maintain time can be controlled by the CNC system.

8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

    9.    Standard Top tool is fitted with Rapid clamping.

             4-way V-Die with different openings

    10.    Fast/quick Top tool clampings, hydraulic automatic clamping is optional.

    11.    Foot pedal with emergency stop.

    12.    Front ram cover with lamp for lighting.

     13.   Front supporters moves smoothly on linear guider along worktable in rightward or leftward, also can be adjusted up and down.

  14. CNC controller Delem DA53T, DA58T, Cybelec CT8 CT12 to control 3+1 (Y1,Y2,X,+V) or 4+1 (Y1,Y2,X,R,+V)

  Optional functions or parts,

  1 Laser safe protector, or Light curtin guarding.

  2. Front plates follow-up supporting device.

  3. CNC controller DA66T,DA69T control more axises with servo motors

6+1 (X,Y1,Y2,R,Z1,Z2,+V)

  8+1 (X,Y1,Y2,R,Z1,Z2,Z3,Z4+V)

  8+1 (Y1,Y2,X1,X2,R1,R2,Z1,Z2,+V)

  10+1 (X1,X2,Y1,Y2,R1,R2,Z1,Z2,Z3,Z4+V)

  4. Main AC motor updates to servo motor.

  5. Depth throat upto 600mm.

  6. More tools can be customized.
