Automatic CNC Aluminum Cutting Machine Extrusion Aluminum Machining Center

Automatic Aluminum plates circular sawing machine Aluminum machining center

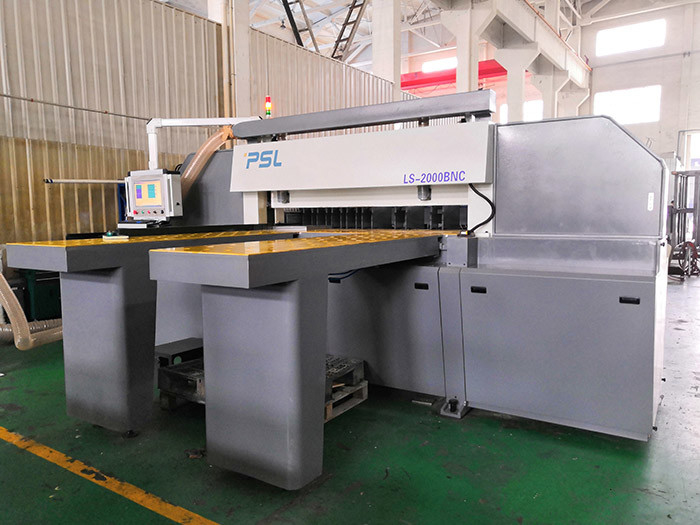

Machine name: Automatic Aluminum sawing machine

Model: LS-2000BNC

▲  LS Staff Union on behalf of the company semi-automatic aluminum sawing machine models. Representative

▲  2000 aluminum saws size,

▲  BNC on behalf of automatic.

This device is applicable to cutting sheet aluminum, copper, and composite panels.



Main technical parameters



Spec./model		LS-2000BNC
Efficary	Cutting length	3800mm
	Cutting width	2000mm
	Max. cutting height	200mm
	Max. height of the blade	220mm
Saw blade	Main saw motor	18.5KW
	Main blade diameter	Ø550mm
	Main saw shaft core dia.	Ø 38mm
	Spindle speed	4000 r/min
Saw seat	Travelling inverter motor	1.5KW
	Forward speed	Max. 9 m/min
	Backward speed	Max. 17 m/min
	Auto feeding servo motor	AC 3KW
	Air pressure	≥5.0 kg/cm2
	Table height	1050 mm
	Overall dimensions	4300×7500×1770
	Voltage	380V/50Hz





Mechanical characteristics:



▲ Touch operation screen:



    1.  Touch type 10 inch operation screen.



    2.  Multiple sets of workbenches can be set up at the same time to facilitate switching during sawing.



   3.  Boot input function.



   4.  Fault self-detection function.





   Al. plate clamping and feeding base:



1.  The bed rails on both sides of the clamp feeding base are made up of welded steel beams. The hard chromium-plated guide rails on one side and the plane guide rails on the other side are matched with gears and gear row drives, and the magnetic ruler is matched with the reducer and the two kilowatt daily servo motor for precise and fast driving positioning. The maximum speed is 6 m/min.





▲ Compressed beam structure:



1.  Adopt the integral pressure beam structure, gear rack and cylinder collocation, evenly drive the pressure beam to rise and press down the sheet material. The pressure is evenly distributed on both sides of the cutting center line. When the rubber strip is installed at the bottom of the pressure beam to avoid pressing, the surface of the work object is pressed to ensure the precise cutting quality.





   Saw seat:



1.  Parallel linear slideway design can effectively reduce the moving inertia of the saw seat, improve the smooth performance of the giant seat, and effectively reduce the sway of the movement to achieve the best cutting line accuracy.



2.  The main saw motor is 20HP (18.5 kW). Its huge stroke adopts 2HP (1.5 kW) frequency conversion motor to drive with reducer and precision gear teeth row. The main saw matches up and down action of oil cylinder, so sawing is more powerful, avoiding the phenomenon of jamming and crushing caused by traditional chain transmission.



3.  Saw blade cutting location can automatically locate the rising cutting position according to program width editing settings to start cutting.



4.  A square tubular dust collecting trough is arranged under the saw seat, and two sides of the film cover each other and extend to the tail end of the cutting to ensure that the dust collecting trough achieves the highest dust collecting effect.



5.  The maximum cutting speed of the sawblade stroke is 6 m/min and 7 m/min. The cutting speed can be adjusted by the panel knob according to the height of the cutting workpiece, and the cutting speed can be changed in real time. Users can adjust their preference needs according to the nature of the cutting objects.





▲ Main Workbench:



The main working table is also a floating table. Copper air float beads are arranged on the hard chrome plated panel. Under the condition of enhanced durability, the working efficiency of the worker's upper sheet metal is also improved.





▲ Clamps:



   1.  Standard configuration of number of work clamps: 8 pcs of clamps.



   2.  Each clamp is equipped with a cylinder to pull the workpiece sheet in a lever way, so that when it pulls the workpiece, it can ensure that the           working material does clamp the sheet.



▲ Dust-proof sheet



The segmental dustproof sheet adopts transparent plastic sheet, which can effectively restrain dust ejection and achieve safety protection function.



▲ Electronic control box configuration:



    1.  All electronic parts are purchased from Taiwan's original factory.



    2.  The servo motor and servo driver are Delta.



    3.  The frequency converter is Taiwan Yingweiteng.



    4.  Electronic parts do not need cooling system at all. For popularization of electronic parts, they can be purchased and replaced with the

        market  without worrying about dust invasion, as long as they are cleaned and maintained regularly.



▲ Power supply:



    1.  The power supply is industrial three-phase supply with a voltage of 380V/50HZ.



▲ Air pressure supply:



    Use air pressure 5-6 kg/cm





▲ Dust collection:



   1.  The supplier provides scraper chip removal system, which is installed in place synchronously with the sawing machine to ensure chip removal function.





▲ Standard equipment:



    1.  One main saw blade: carbide saw blade (special for aluminum plate).



    2.  Work clamps: 8pcs.



    3.  Floating feeding table: 1800mm x 600mm x 2 sets.



    4.  The toolbox contains a set of tools.



    5.  The belt of the main saw motor is arranged in the machine.
